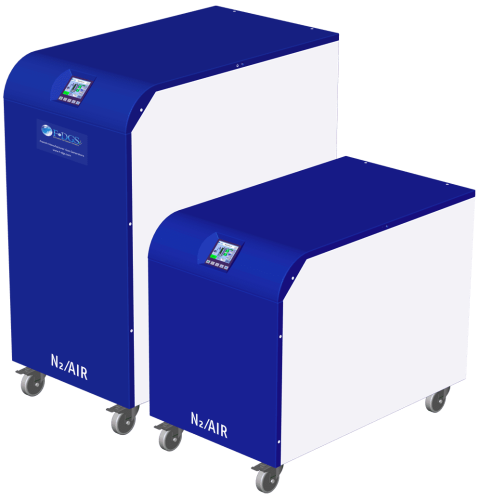

CALYPSO 2G.SH Combined Nitrogen Air Generator

CALYPSO 2G.SH Combined Nitrogen Air Generator

For Shimadzu (LCMS 8045 - 8050 - 8060 - 9030) - PSA

Reference | CALYPSO.2G/1.SH - CALYPSO.2G/1.HF.SH (With comp.) or CALYPSO.2G/0.SH - CALYPSO.2G/0.HF.SH (Without comp.)
Nitrogen/Air
LC-MS-8045, LC-MS-8050, LC-MS-8060, LC-MS-9030

The CALYPSO.2G/1.SH is a dual flow generator, which has been specifically designed to meet the nitrogen and dry air needs to supply the Shimadzu LCMS 8045, 8050, 8060 wich allows users to change the flow ratio of nitrogen and dry air from the touch screen display, such that the total flow is 25 L/min, split between nitrogen and dry air.

The CALYPSO.2G/1.HF.SH has been designed to provide increased flows of Nitrogen and Dry Air for the latest Shimadzu LCMS-9030, or when LCMS 8045, 8050, 8060 are operated in High Flow gas delivery mode.

The generator is built with internal air compressors as standard, and is extremely quiet in operation.

The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressure, N2/Air Flow and status of the system with remote access for diagnostic control.

calypso-2g-sh-nitrogen-air-generator

Advantages product

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED ECONOMY

 Clean dry air and nitrogen gas produced as standard.

IMPROVED SAFETY

Clean dry air and nitrogen gas produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

 Intelligent color touch screen to provide simple and user friendly management of all functions of the unit
 Fully regenerative PSA technology
 Complete ‘Plug and Play’ system specifically designed for the Shimadzu LCMS-8045, 8050, 8060, 9030
 High Nitrogen pressure up to 6.9 bar (100 psi)
 With integral oil free air compressor
 Quiet thanks to the Soundproofed compressor box and anti-vibration features
 Auto start
 Audible alarm display and Visual maintenance indication with history log
 Outlet flow indicator
 Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor
 Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)
 Compact design
 Fit with wheels

Specifications

Models
CALYPSO.2G/0.SH
CALYPSO.2G/1.SH
CALYPSO.2G/0.HF.SH
CALYPSO.2G/1.HF.SH
Compressor
0 (Without)
1 (With)
0 (Without)
1 (With)
GENERALS INFORMATIONS
Max Outlet Flow rate
Max Flow Rate up to 25 L/min of Air &
Nitrogen combined
Up to 27 L/min N2
29 L/min Air
Max Nitrogen pressure
6.9 bar (100 psi)
Purity Air/N2
Air Dew point -20°C (-4°F) ; Nitrogen < 2% O2
Particles
< 1 μ
Inlet Air flow required @ 9 bar (130.5 psi)
70 L/min
N /A
130 L/min
N /A
Touch screen
Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity
80% RH @ 25°C (77°F)
Temperature range
From 5 – 25°C (41 – 77°F))
Max Altitude
3000 Meters
Noise level @ 1M
50 dB (A
52 dB (A)
50 dB (A
53 dB (A
Dimensions
(W x H x D)
47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
47.5 x 100 x 79 cm
(18.7’’ x 39’’ x 31’’)
Weight (kg/lbs)
96 / 211.6
120 / 264.5
119 / 262.3
155 / 341
Electrical supply
220 – 240 V ac / 1 ph / 50 – 60 Hz
110 – 120 V ac / 1 ph / 50 – 60 Hz
Power comsuption
1700 VA
2550 VA
Fuse
16A
CONNECTIONS
Nitrogen/Air outlet
2 x 1/4”G (BSP) Female
COMMUNICATION
USB/PC Control
In series
