CALYPSO Nitrogen Gas Generator

CALYPSO Nitrogen Gas Generator

PSA Technology

Reference | CALYPSO.[Flow rate]/0 (Without comp.) or CALYPSO.[Flow rate]/1 (With comp.)
Nitrogen
LC-MS, Sample evaporation

With 5 models, 15 L/min to 70 L/min, the CALYPSO Nitrogen range provide a nitrogen solution for LCMS instrument with an increase pressure of 8 bar (116 psi).

The CALYPSO is available without or with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressure, N2 Flow and status of the system with remote access for diagnostic control.

Utilizing Smart Triple Filtration and Advanced technology PSA of separating Nitrogen and Oxygen to produce high quality Nitrogen gas on demand 24/7.

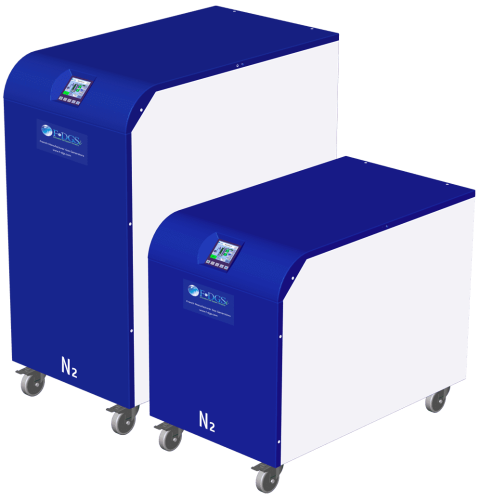

calypso-nitrogen-generator

Advantages product

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED ECONOMY

Pure nitrogen gas produced as standard.

IMPROVED SAFETY

Nitrogen produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

 Intelligent color touch screen to provide simple and user friendly management of all functions of the unit
 Fully regenerative PSA technology
 High Nitrogen pressure up to 8 bar (116 psi)
 Smart triple filtratrion PSA technology producing analytical grade nitrogen gas up to 99.99% purity
 With integral oil free air compressor
 Quiet thanks to the Soundproofed compressor box and anti-vibration features
 Auto start
 Audible alarm display and Visual maintenance indication with history log
 Outlet flow indicator
 Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor
 Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)
 Compact design
 Compressors redundancy
 Fit with wheels

Specifications

Models
CALYPSO.15
CALYPSO.25
CALYPSO.35
CALYPSO.64
CALYPSO.70
Compressor
0(Without)
1(With)
0(Without)
1(With)
0(Without)
1(With)
0(Without)
1(With)
1(With)
GENERALS INFORMATIONS
Max Nitrogen Flow rate
15 L/min
25 L/min
35 L/min
64 L/min
70 L/min
Max Nitrogen pressure
8 bar (116 psi)
Nitrogen purity*
99% – 99,99%
Particles
0.01 μ
Inlet Air flow required @ 9 bar (130.5 psi)
53 L/min
N/A
68 L/min
N/A
109 L/min
N/A
145 L/min
N/A
N/A
Min Inlet Air quality
ISO8573-1:2010 1.4.1
N/A
ISO8573-1:2010 1.4.1
N/A
ISO8573-1:2010 1.4.1
N/A
ISO8573-1:2010 1.4.1
N/A
N/A
Temperature range
From 5 – 35°C (41 – 95°F) and humidity 80% to 25°C (77°F)
Touch screen
Touch screen (operating parameters, system status, alarms and maintenance)
Max Relative Humidity
0% RH @ 25°C (77°F)
Temperature range
From 5 – 35°C (41 – 95°F)
Max Altitude
3000 Meters
Noise level @ 1M
53 dB (A)
58 dB (A)
Dimensions
(W x H x D)
47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
47.5 x 100 x 79 cm(18.7’’ x 39’’ x 31’’)
Weight (kg/lbs)
94 / 207
118 / 260
94 / 207
118 / 260
94 / 207
118 / 260
115 / 253
160 / 353
172 / 379
Electrical supply
220 – 240 V ac / 1 ph / 50 – 60 Hz
110 – 120 V ac / 1 ph / 50 – 60 Hz
CONNECTIONS
Nitrogen outlet
1/4″ GF
Air Inlet
1/4’’ GF
N/A
1/4’’ GF
N/A
1/4’’ GF
N/A
1/4’’ GF
N/A
N/A
COMMUNICATION
USB/PC Control
In series

* Factory certified purity with respect to O2 content. Actual purity varies in relation to flow (min. 99% at maximum flow output)
