Z.PROSPERO Zero Nitrogen Air Generator

Z.PROSPERO Zero Nitrogen Air Generator

High Purity HCS Free - PSA Technology

Reference | Z.PROSPERO.[Flow rate]/0 (Without comp.) or Z.PROSPERO.[Flow rate]/1 (With comp.)
Zero Nitrogen/Air
GC-Carrier gas, GC-FID, GC-FPD, GC-Make up, GC-NPD, GC-TCD

The combined Zero Nitrogen/Air delivers a continuous stream of High Purity Nitrogen gas (> 99.9995%) and grade purify Air with Hydrocarbon content (< 0.1 ppm), ideal for application such as GC-Carrier gas, Make up and GC-FID.

The Z.PROSPERO is available without or with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation. The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressure, ZN2/Air Flow and status of the system with remote access for diagnostic control.

Utilizing Advanced technology PSA of separating Nitrogen and O2 to produce high quality Nitrogen gas and activated alumina column to produced purify Air on demand 24/7. For the Z.PROSPERO, a heated catalyst oxidises CH4 from the Nitrogen gas flow providing Zero Nitrogen with Total hydrocarbon less than 0.05 ppm.ย

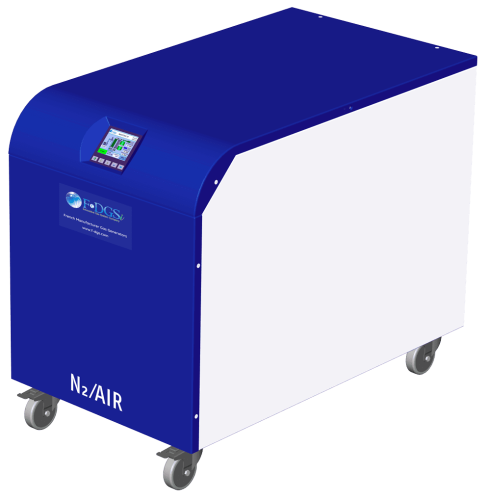

z-prospero-nitrogen-air-generator

Advantages product

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED ECONOMY

Pure Nitrogen and Pure Air gas produced as standard.ย

IMPROVED SAFETY

Pure Nitrogen and Pure Air produced at low pressure and ambient temperature removes the need for high pressure cylinders.ย

SECURITY OF SUPPLY

Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

 Intelligent color touch screen to provide simple and user friendly management of all functions of the unit
 Fully regenerative PSA technology
 Without or with integral oil free air compressor
 Quiet thanks to the Soundproofed compressor box and anti-vibration features
 Option: Oxygen sensor: Online N2 Purity monitoring capability
 Catalyst module: THC < 0.05 ppm
 Auto start
 Fast start-up purity < 60 min
 Audible alarm display and Visual maintenance indication with history log
 Outlet Nitrogen/Air flow indicator
 Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor
 Remote PC monitoring and diagnostic analysis via USB to interface the unit with customerโ€™s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)
 Compact design
 Fit with wheels

Specifications

Models
Z.PROSPERO.1
Z.PROSPERO.3
Z.PROSPERO.5
Compressor
0 (Without)
1 (With)
0 (Without)
1 (With)
1 (With)
GENERALS INFORMATIONS
Max Nitrogen Flow rate
1 L/min
3 L/min
1.5 L/min
Max Pure Air Flow rate
1.5 L/min
3 L/min
5 L/min
Max N2/Air pressure
6 bar (87 psi)
Nitrogen purity
> 99.9995% (< 5 ppm O2); Total HCs < 0.05 ppm
Pure Air purity
HCs < 0.1 ppm; Air Dew Point < -55ยฐC (-67ยฐF)
Particles
0.01 ฮผ
Inlet Air flow required @ 8 bar (116 psi) max
16 L/min
N /A
42 L/min
N /A
Min Inlet Air quality
ISO8573 – 1:2010 1.4.1
N /A
ISO8573 – 1:2010 1.4.1
N /A
Touch screen
Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity
80% RH @ 25ยฐC (77ยฐF)
Temperature range
From 5 – 25ยฐC (41 – 77ยฐF))
Max Altitude
3000 Meters
Noise level @ 1M
25 dB (A)
50 dB (A)
25 dB (A)
52 dB (A)
Dimensions
(W x H x D)
47.5 x 66.2 x 65 cm
(18.7″ x 26″ x 25,6″)
47.5 x 66.2 x 79 cm
(18.7″ x 26″ x 31″)
Weight (kg/lbs)
59 / 130
66 / 145
101 / 223
113 / 249
Power consumption
430 VA
630 VA
430 VA
1130 VA
Electrical supply
220 – 240 V ac / 1 ph / 50 – 60 Hz
110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse
10A
CONNECTIONS
Nitrogen/Air outlet
G 1/4โ€ (BSP) Female
Air Inlet
G 1/4โ€ (BSP) Female
N/A
G 1/4โ€ (BSP) Female
N/A
COMMUNICATION
USB/PC Control
In series
