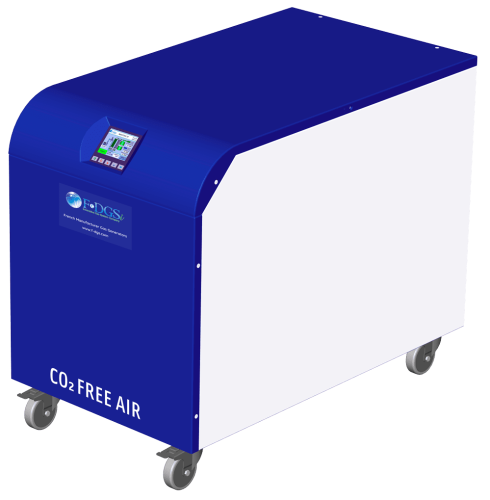

DEIMOS CO2.FREE Air Gas Generator

DEIMOS CO2.FREE Air Gas Generator

H2O, CO2 Free

Reference | DEIMOS.CO2.FREE.[Flow rate]/1 (with comp.)
CO2 Free Air
FT-IR

F-DGS’s DEIMOS CO2.FREE Air Gas generators is specifically designed for use with FT-IR spectrometers to provide a purified purge and air bearing gas supply from compressed air.

The unit provides instruments with CO2 free compressed air at less than -70°C (-94°F) dewpoint with no suspended impurities larger than 0.01 micron 24 hours/day, 7days/week.

The DEIMOS CO2.FREE is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

The generator is controlled using the latest color touch screen technology to display the process in real time, inlet / outlet pressure, Air Flow and status of the system with remote access for diagnostic control.

deimos-co2-free-air-generator

Advantages product

BETTER DETECTOR PERFORMANCE

The CO2 FREE Air gas generator generates cleaner background spectra in a shorter period of time and more accurate analysis by improving the signal-to-noise ratio.

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED SAFETY

CO2 FREE Air gas produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

 Intelligent color touch screen to provide simple and user friendly management of all functions of the unit
 With integral oil free air compressor
 Quiet thanks to the Soundproofed compressor box and anti-vibration features
 Auto start
 Audible alarm display and Visual maintenance indication with history log
 Outlet flow indicator
 Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor
 Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)
 Compact design
 Fit with wheels

Specifications

Models
DEIMOS.CO2.FREE.1/1
DEIMOS.CO2.FREE.10/1
DEIMOS.CO2.FREE.30/1
GENERALS INFORMATIONS
Max Purge Air Flow rate
1 L/min
10 L/min
30 L/min
Max Purge Air pressure
6 bar (87 psi)
CO2 level
< 1 ppm
H2O Dew Point
-70°C (-94°F)
Particles
0.1 μ
Touch screen
Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity
80% RH @ 25°C (77°F)
Temperature range
From 5 – 25°C (41 – 77°F))
Max Altitude
3000 Meters
Noise level @ 1M
50 dB (A)
52 dB (A)
Dimensions
(W x H x D)
47.5 x 66.2 x 65 cm
(18.7″ x 26″ x 25.6″)
47.5 x 66.2 x 79 cm
(18.7″ x 26″ x 31″)
Weight (kg/lbs)
58 / 127
108 / 238
115 / 253.5
Power consumption
350 VA
850 VA
1700 VA
Electrical supply
220 – 240 V ac / 1 ph / 50 – 60 Hz
110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse
10A
CONNECTIONS
Purge Air outlet
G 1/4” (BSP) Female
COMMUNICATION
USB/PC Control
In series
